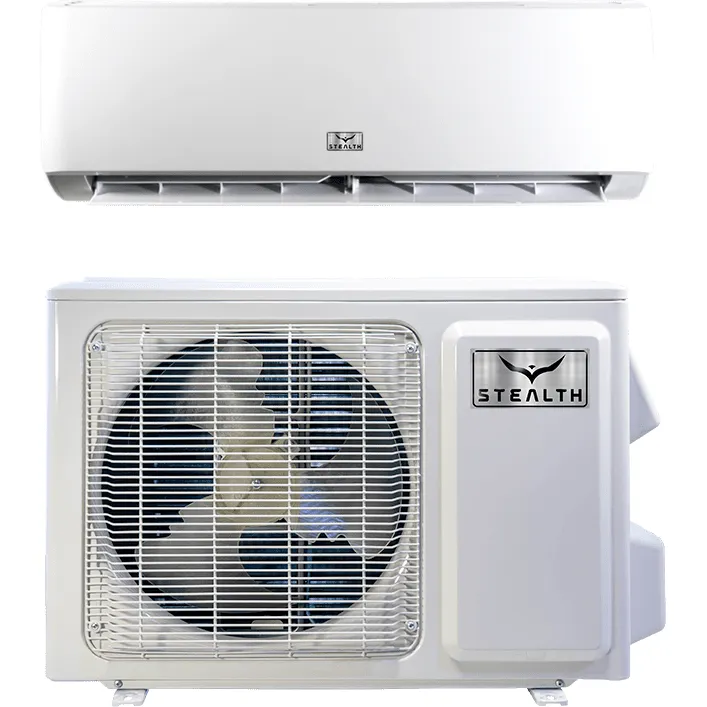

Stealth Comfort 18,000 BTU 20 SEER Stealth Emerald Single Zone Wall Mount Mini Split System SC-18WGLD-HP230 / SC-18ZGLD-HP230
Stealth Emerald series makes it possible to have Stealth quality for stand-alone spaces such as gyms, garages, pool houses, sun porches or bonus rooms with up-front cost savings.

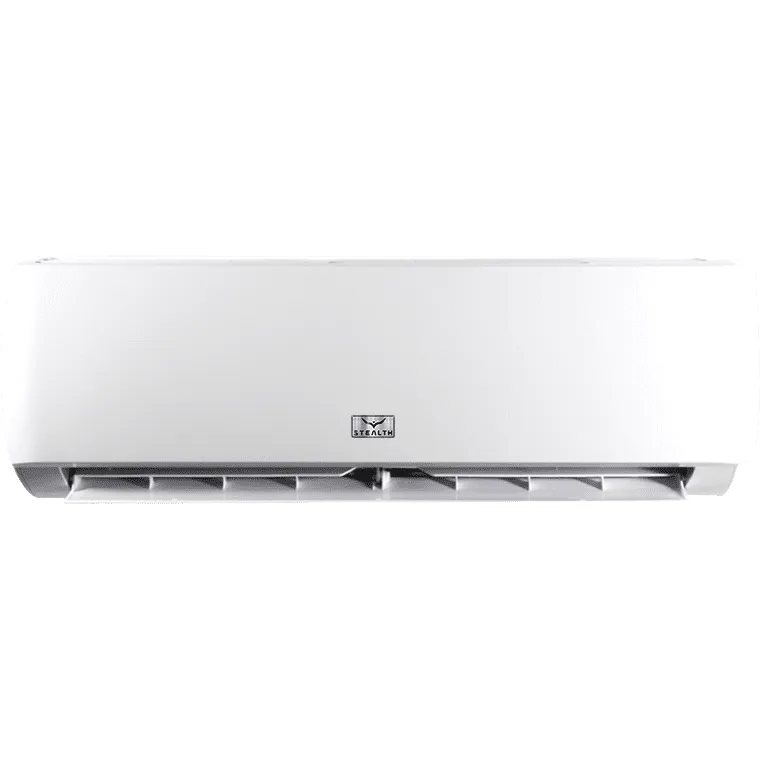

Stealth Emerald Series single zone mini-split systems features an air handler that easily mounts onto the wall. With attention to detail in design and state-of-the-art manufacturing, Stealth Emerald Series wall mounted mini split systems will complement any décor.
Rugged construction, combined with an acrylic resin fin coating equals a long, trouble-free service life. Precision engineering is behind every Stealth Emerald Series model, resulting in continuous heating with outside temperatures anywhere from from to 75°F to -22°F.

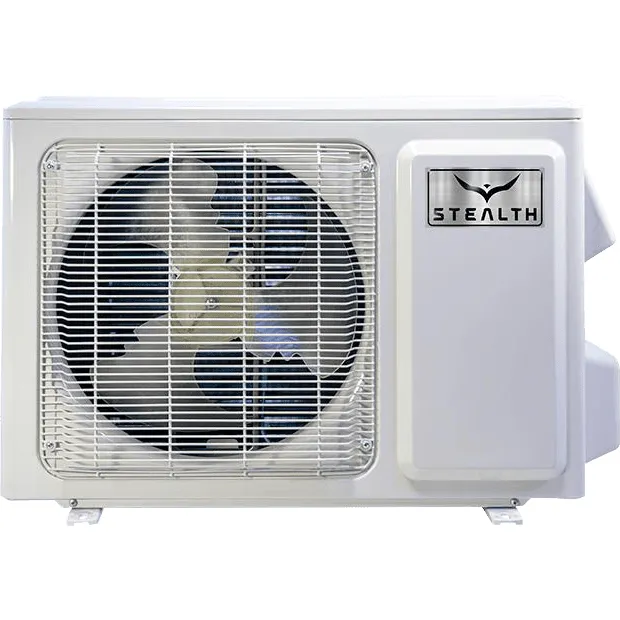

Stealth Emerald Series single zone mini-split systems provide precise temperature control, near silent operation and high efficiency at a reasonable price. The heat pump condenser has a variable inverter compressor for even, predictable cooling and heating without temperature swings, or noisy on-and-off cycling.
EnergyStar rated (except 36,000 model)
Features
- Compact and Quiet Design
- High Efficiency DC Inverter Technology
- Wireless Remote with LCD Display
- Wi-Fi Ready
- Wired Tether Controller (Sold Separately)
- Low Ambient Cool to 0 deg F
- Blue Fin Condenser Coil
System
|
Inverter Type |
G10 |
|
Ultra Low Frequency Torque Control |
Yes |
|
Power Factor Correction |
Yes |
|
Compressor Type |
High Eff. Rotary |
|
Refrigerant Type |
R410A |
|
Basepan With Electric Heater |
YES |
|
Compressor With Electric Heater |
YES |
|
Outdoor Fin Coating |
Blue Fin |
|
Intelligent Defrosting |
YES |
|
Intelligent Preheating |
YES |
|
Low Voltage Startup |
YES |
|
Memory/Power Failure Recovery |
YES |
|
Self Diagnosis |
YES |
|
Wired Controller Interface |
YES |
|
Wi-Fi Interface Capable |
Optional (see PN: WSBEC02) |
|
Indoor Fan Type |
Crossflow |
|
Multi Fan Speeds |
4 Speeds |
|
Indoor Unit Display |
YES |
|
Advance Filter |
Optional (see Filter Kits) |
|
Auxiliary Electrical Heater |
NO |
|
Ventilation (Outdoor Air) |
NO |
Remote Controller Functions
|
Auto Mode |
YES |
|
Auto Fan |
YES |
|
Auto Swing (Horizontal Auto Swing) |
NO |
|
Auto Swing (Vertical Auto Swing) |
YES |
|
Clock on Remote Controller |
YES |
|
Dry Mode |
YES |
|
Dry Anti-Mildew (X-Fan) Mode |
NO |
|
Energy Saving Mode |
YES |
|
Dirty Filter Alert |
NO |
|
I Feel Function |
YES |
|
Lock on Remote Controller |
YES |
|
Quiet Mode |
NO |
|
Room Temperature Display |
YES |
|
Sleep Mode |
YES |
|
4 Sleep Modes Options |
NO |
|
Timer Mode |
YES |
|
Turbo Mode |
YES |
|
Display On/Off Control |
YES |
|
Freeze Guard Mode |
YES |
|
Display On/Off Control |
YES |
|
Freeze Guard Mode |
YES |
Specifications
|
Cooling |
|
|
Rated Capacity |
18,000 BTU/H |
|
Capacity Range |
6,800-20,000 BTU/H |
|
Power Input (Max) |
2,600 W |
|
SEER |
20.0 |
|
EER |
12.5 |
|
Heating at 47° F |
|
|
Rated Capacity |
19,800 BTU/H |
|
Capacity Range |
7,340-23,500 BTU/H |
|
Power Input (Max) |
2,600 W |
|
HSPF |
10.5 |
|
COP |
4.7 |
|
Heating at 17° F |
|
|
Rated Capacity |
12,400 BTU/H |
|
|
|
|
Operating Range |
|
|
Cooling (Max) |
115°F (46 C) |
|
(Min) |
0°F (-18 C) |
|
Heating (Max) |
75°F (24 C) |
|
(Min) |
-4°F (-20 C) |
Indoor Unit Data
|
Fan Motor |
Type |
Cross-Flow |
|
|
Output Power |
60 W |
|
|
FLA |
0.24 A |
|
Airflow |
|
|
|
Cooling Wet (Lo/Hi) |
335/559 CFM |
|
|
Heating Dry (Lo/Hi) |
335/559 CFM |
|
|
|
|
|
|
Sound Level |
|
|
|
Cooling (Min/Max) |
39/47 db(A) |
|
|
Heating (Min/Max) |
39/47 db(A) |
|
|
|
|
|
|
Dehumidification |
3.80 pt/hr |
|
Outdoor Unit Data
|
Compressor |
Type |
DC Inverter Driven Rotary |
|
|
RLA |
12.1 A |
|
|
|
|
|
Refrigerant Type |
R410A |
|
|
Fan Motor |
Output Power |
60 W |
|
|
FLA |
0.49 A |
|
|
|
|
|
Sound Level |
|
|
|
Cooling/Heating |
55/55 db(A) |
|
Electrical Data
|
Power Supply |
|
|
|
Normal Operational Voltage |
208/230 V, 1 Phase, 60 Hz |
|
|
Voltage Range |
187 - 253 V |
|
|
MCA |
|
16.0 A |
|
MOCP/Breaker Size |
25 A |
|
|
Main Power Wire Size |
10-2 AWG |
|
Refrigerant Piping Data
|
Gas Pipe Size (OD) |
5/8-in |
|
Liquid Pipe Size (OD) |
1/4-in |
|
Connection Method |
Flared |
|
Factory Charge |
56.4 oz |
|
Additional Charge |
0.21 oz/ft |
|
Pre-Charge Length |
25-ft |
|
MAX Refrigerant Pipe Length |
82-ft |
|
MIN Refrigerant Pipe Length |
10-ft |
|
MAX Refrigerant Pipe Elevation |
33-ft |
