SURE-FOOTED IN OR OUT OF THE CITY

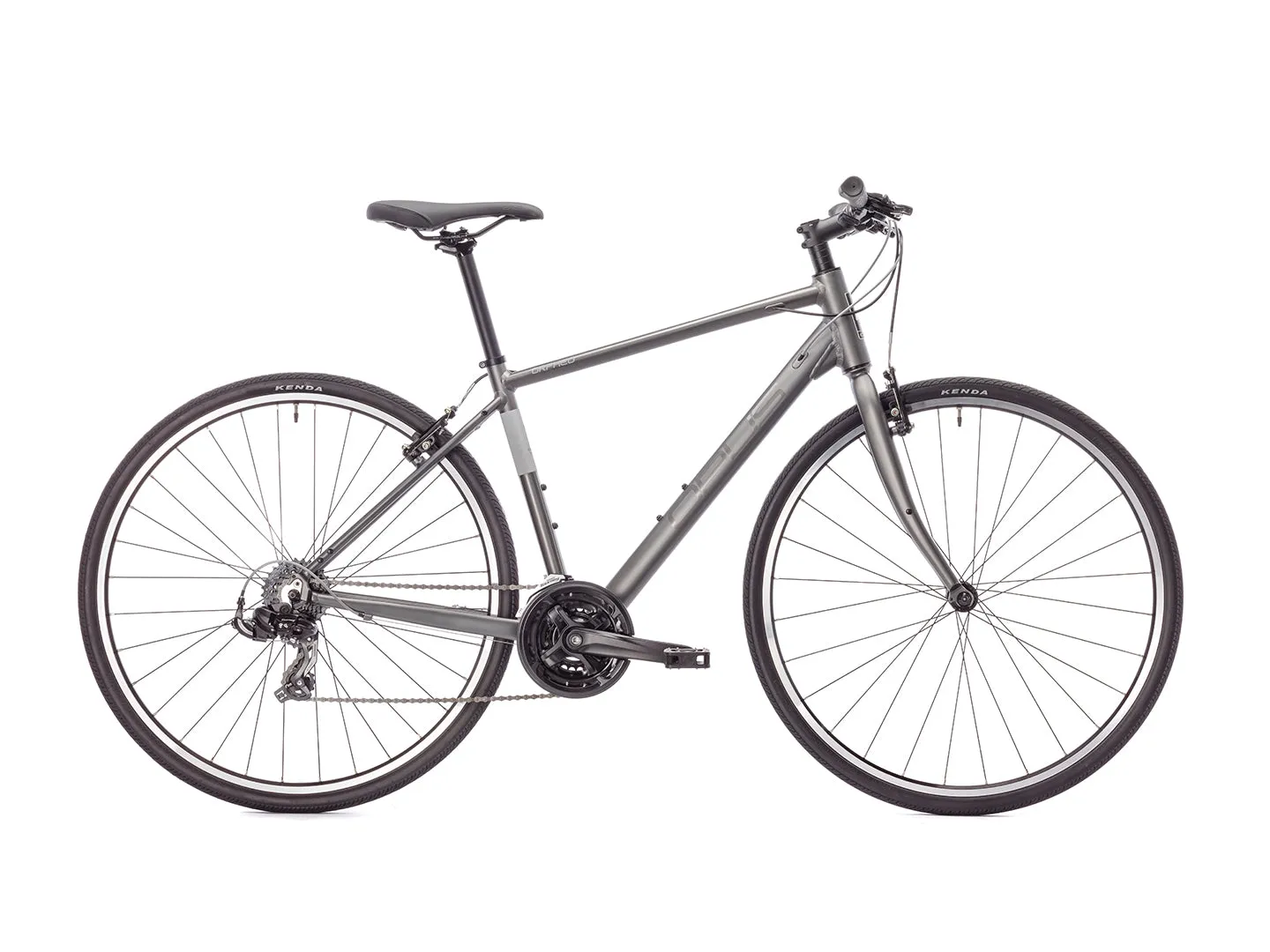

Meet Opus’ most affordable urban performance bike. The Orpheo 5 combines quality Shimano components, fast and versatile 35 mm tires and all the comforts of an easy-handling hybrid. Equally at home on a neighborhood jaunt, a country cruise or a high-intensity ride. On the Orpheo 5, every ride’s a total blast.
· Sporty Progressive Geometry for performance and comfort
· Alloy frame
· Shimano 3x7 drivetrain
· V brakes
· Internal cable routing
| FRAME | Meta 10 aluminum |
| FORK | Steel 1 1/8 in |
| WEIGHT (LB) | 25 |
| SIZES | XS-S-M-L-XL |
| COLOR(S) | Zinc Graphite |
| SHIFTERS | Shimano ST-EF500 3x7 |
| FRONT DERAILLEUR | Shimano Tourney |
| REAR DERAILLEUR | Shimano Tourney |
| BRAKES | Z Star RX-823DK V-brake |
| BRAKE LEVERS | Shimano |
| CRANK | Prowheel TA-CM68 |
| CHAINRINGS | 42-34-24 |
| BOTTOM BRACKET | Neco cartridge |
| CASSETTE | Shimano 12-28 |
| CHAIN | KMC-Z7 |
| HEADSET | Neco H115 sealed semi-integrated |
| HANDLEBAR | Alloy 12 mm rise |
| STEM | Promax |
| GRIPS/TAPE | Velo ERGO dual density |
| SADDLE | Opus City |
| SEATPOST | Promax alloy 27.2 x 300 |
| WHEELS/RIMS | Weinmann ZAC 19 |
| HUBS | Joytech |
| TIRES | Kenda Kwick Tendril 700 x 35 |
| PEDALS | FPD NW-247 |
| OTHER | Front and rear-rack and fender ready |
| Geometry | XS | S | M | L | XL |
| Riders's height |
| ||||
| ± 5cm | 155 | 164 | 173 | 182 | 191 |
| ± 2" | 5’1” | 5’4.5” | 5’8” | 5’11.5” | 6'3" |
| Size (cm) | 38 | 42 | 460 | 55 | 54 |
| S - Seat tube (effective center-center in mm) | 380 | 420 | 460 | 500 | 540 |
| TT - top tube (effective center-center in mm) | 529 | 547 | 568 | 589 | 611 |
| HT - Head tube (mm) | 113 | 131 | 154 | 176 | 196 |
| HA - Head angle (mm) | |||||
