Description

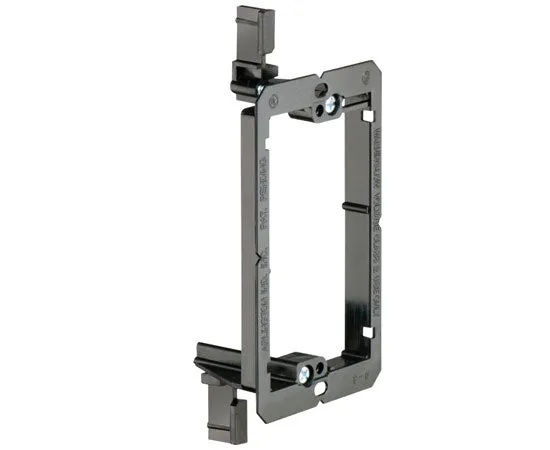

Low Voltage Single-Gang Mounting Bracket
Our Single-Gang low voltage mounting bracket is used to save money and time when installing class 2 communications, computer, and cable TV wiring into existing walls. This product has extra-long screws for use with finished wall surfaces from 1/4" to 1-1/2" thickness. When installed correctly, this bracket will seat a wall plate flush into a wall.
Features
Features
- Non-metallic - better than metal and costs less too!
- For communications, cable TV, computer wiring
- Adjusts to fit 1/4" to 1" thick wallboard, paneling, or drywall

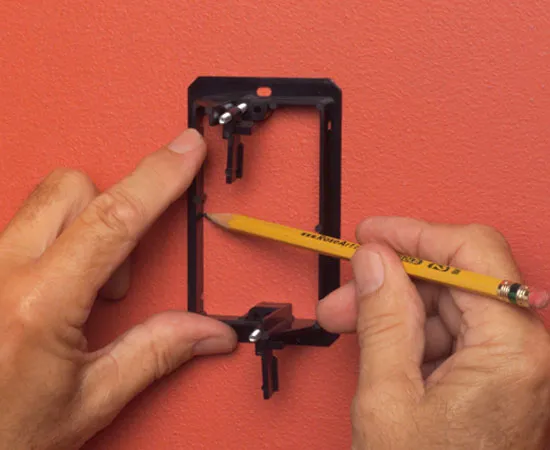

- Bracket is its own template for cut out
- Mounting wings hold bracket securely against wall when screws are tightened
- UL Listed
- Recessed Screw Hole
- Thin Front Lip seats wall plate flush with wall surface
- Oval Hole allows final shifting, straightening of device
- Works For Low Voltage Fire Alarm Installations too!
Specifications
Specifications
Single Gang
| Adjusts to fit wall thickness |
Number of mounting wings |
gangs |
| 1/4" to 1" |
2 |
Single (1) |
| Dimension "A" |
Dimension "B" |
Dimension "C" |
Dimension "D" |
Dimension "E" |
7.75
|
5.25
|
3.5
|
1.690 |
1/4"-1" |

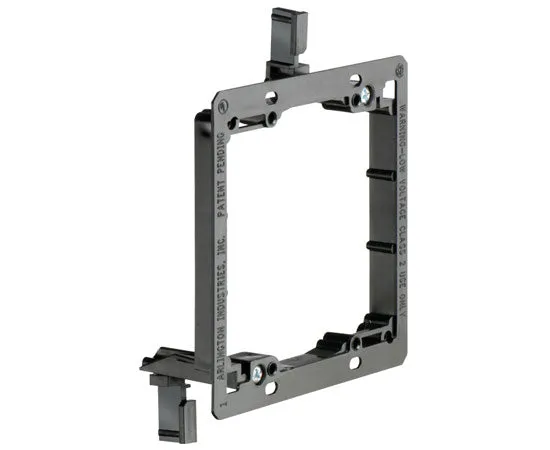

Double Gang
| Adjusts to fit wall thickness |
Number of mounting wings |
gangs |
| 1/4" to 1" |
2 |
Two (2) |
| Dimension "A" |
Dimension "B" |
Dimension "C" |
Dimension "D" |
Dimension "E" |
10.25"
|
5.25"
|
3.5"
|
1.750" |
1/4"-1" |

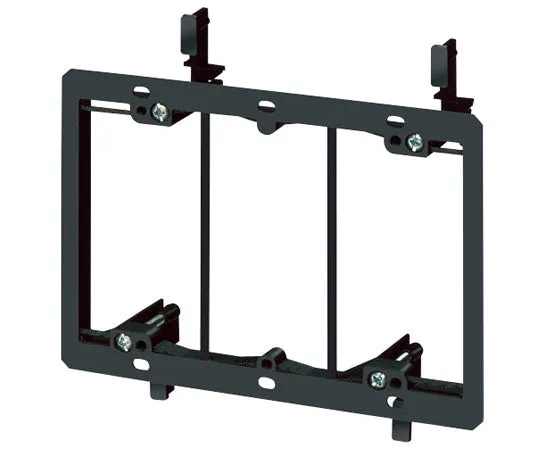

Three Gang
| Adjusts to fit wall thickness |
Number of mounting wings |
gangs |
| 1/4" to 1" |
3 |
Three (3) |
| Dimension "A" |
Dimension "B" |
Dimension "C" |
Dimension "D" |
Dimension "E" |
10.25"
|
5.25"
|
3.5"
|
1.700" |
1/4"-1" |

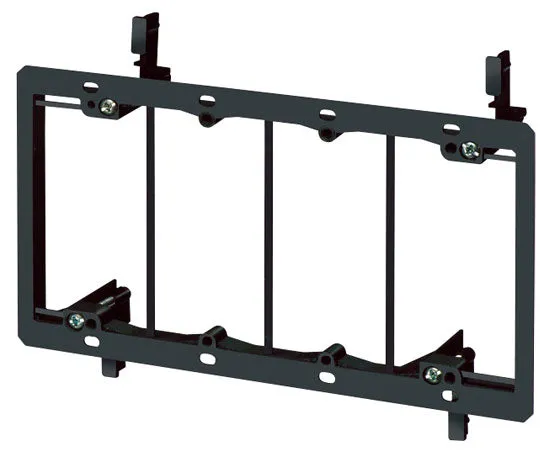

Four Gang
| Adjusts to fit wall thickness |
Number of mounting wings |
gangs |
| 1/4" to 1" |
4 |
Four (4) |
| Dimension "A" |
Dimension "B" |
Dimension "C" |
Dimension "D" |
Dimension "E" |
10.25"
|
5.25"
|
3.5"
|
1.700" |
1/4"-1" |
What's in the Box
What's in the Box
- Qty 1 - Low Voltage Non-Metallic Drywall Mud-Ring Mounting Bracket with Mounting Wings
