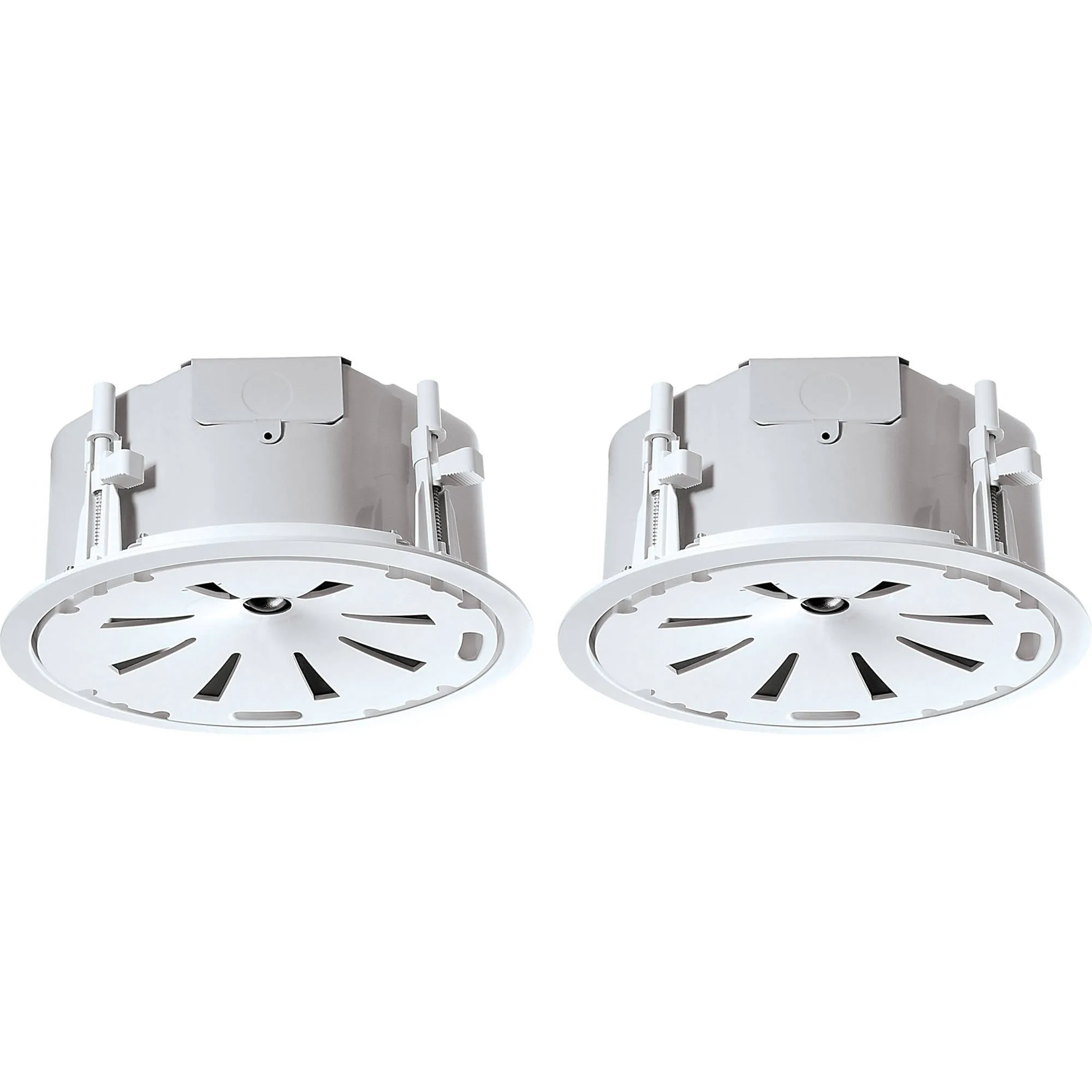

Name: JBL CONTROL-47LP Coaxial Low-Profile Ceiling Speakers (Pair, White) - 6.5"
SKU: 707953

Product Details ＋

Sold as a pair, the white JBL Control 47LP is a passive 6.5" coaxial low-profile ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from retail stores to restaurants. The 60W transformer allows the Control 47LP to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 47LP is equipped with a durable 6.5" polypropylene woofer and a 1" soft dome tweeter, yielding a frequency response of 100 Hz to 17 kHz, and a continuous program power capacity of 150W.

Utilizing JBL's RBI technology and a 10" waveguide, the Control 47LP delivers a wide 120° coverage pattern. The 47LP's slim design is well suited for installation in ceilings with limited vertical space. Removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.

Features

Passive Design, RBI Technology
Low Profile for Shallow Mounting Depths
6.5" Polypropylene Woofer, 1" Tweeter
150W Continuous Program Power Capacity
For 70V/100V or 8-Ohm Power Amplifiers
Multi-Tap Transformer
100 Hz to 17 kHz Frequency Response
Removable Locking Input Connectors
Includes Grilles, C-Rings & Tile Rails
Includes Cutout Templates, Paint Shields

Specifications

Active or Passive	Passive
LF Driver	6.5" / 16.5 cm Woofer with Polypropylene Cone, Butyl Rubber Surround, Copper-Clad Coil, and Vented Aluminum Former
HF Driver	1" / 2.5 cm Ferrofluid-Cooled Soft Dome Tweeter with Dampening
High-Frequency Waveguide	10" / 25 cm
Frequency Range	68 Hz to 20 kHz (-10 dB)
Frequency Response	100 Hz to 17 kHz (±3 dB)
Coverage Pattern	120° Conical
Directivity Factor	6.5
Directivity Index	7.9 dB
Power Capacity	Continuous Program Power: 150 W Continuous Pink Noise: 75 W
Nominal Sensitivity	91 dB
Maximum SPL	Average: 110 dB (at 1 m) Peak: 116 dB (at 1 m)
Nominal Impedance	Bypass Mode: 8 Ohms
Transformer Taps	Watts at 70 V: 7.5, 15, 30, 60 Watts at 100 V: 15, 30, 60
Insertion Loss	At 7.5 W: 0.58 dB At 15 W: 0.61 dB At 30 W: 0.70 dB At 60 W: 0.76 dB
Input	2 x Removable Locking 2-Pin Connectors with Screw-Down Terminals
Maximum Wire Gauge	12 AWG
Shielded	No
Cutout Size	11.1" / 28.2 cm
Ceiling Thickness	Accommodates Tiles/Drywall up to 2.8" / 7 cm Thick
Dimensions	12.0 x 5.6" / 30.5 x 14.2 cm (from Back of Baffle)
Weight	9.5 lb / 4.3 kg
Safety Rating	UL 1480, UL 2043, NFPA 90, NFPA 70, S7232/UL, UL 1876, IEC 60849 / EN 60849
