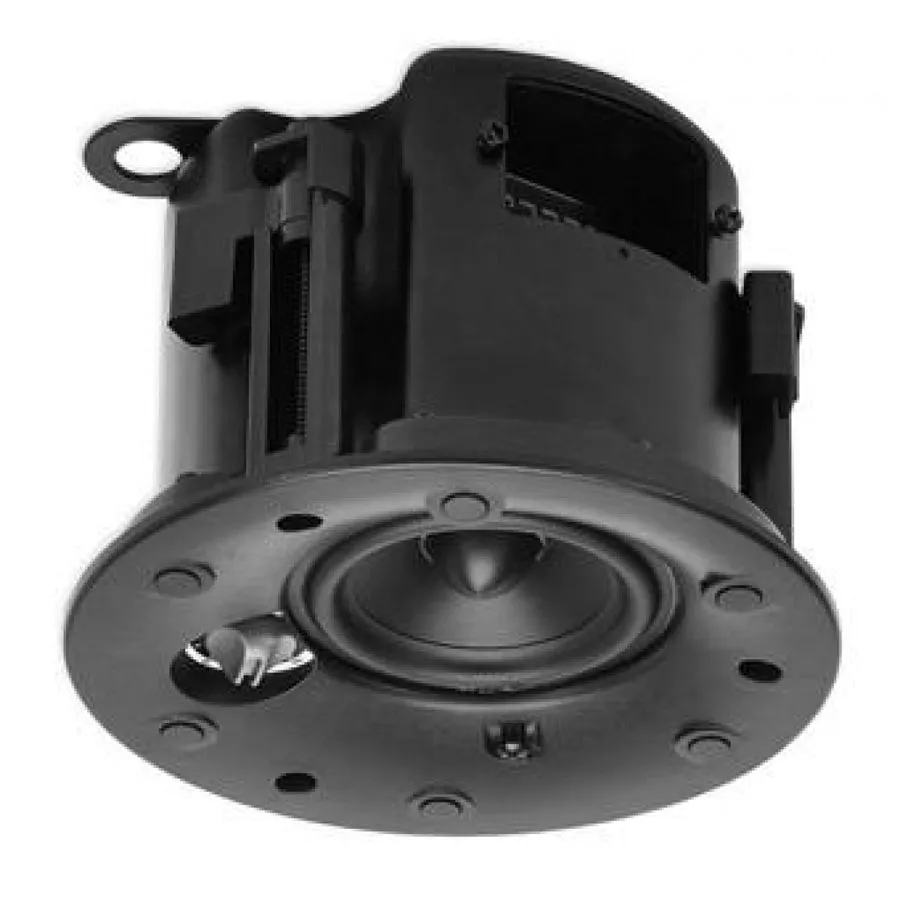

The Cloud CS-C3 In-Ceiling Speaker is a 3" full range loudspeaker featuring exceptional intelligibility and musical performance. Using components, the CS-C3 offers high musicality, with high intelligibility, prioritising bass response over sensitivity. All models offer ZeroEdge™ magnetic grilles which reveal the high/low impedance switch settings for distributed audio systems.
Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.
Features
- 3" Full Range Polypropylene Driver with Rubber Surround and Phase Plug
- Shallow backcan design (100mm).

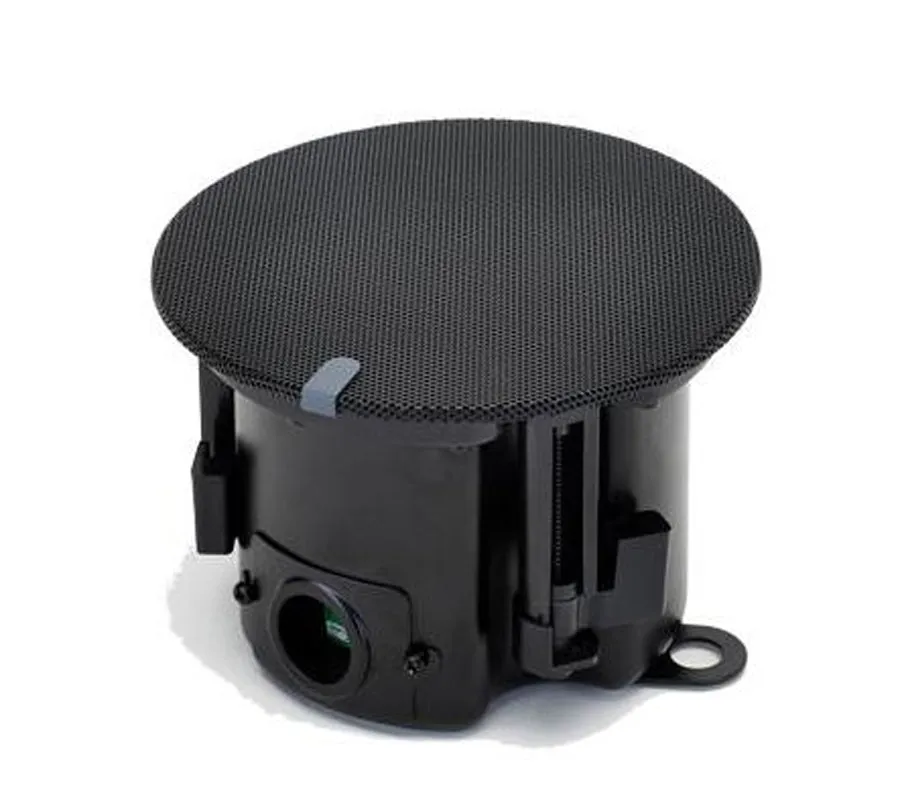

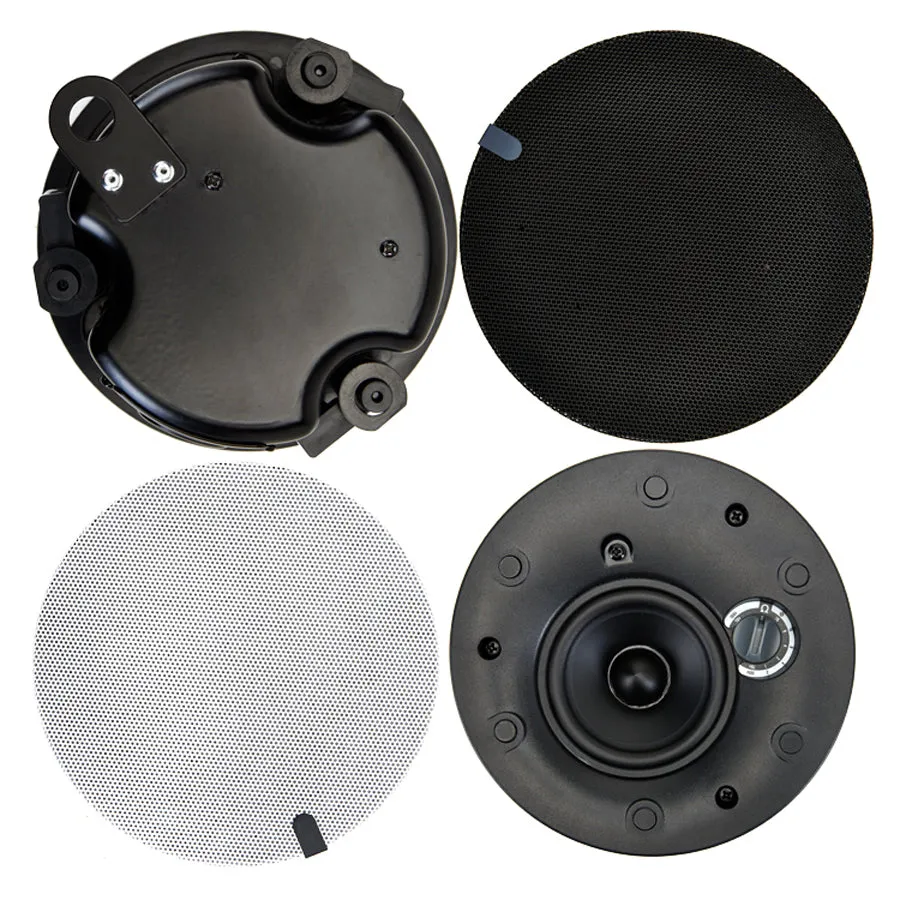

- Magnetic speaker grilles available in Black or White.
- Optional: Square Grill (153.5mm x 153.5mm) or Hexagonal Grill (153.5mm x 177.3mm)
- Accessible high-impedance or low impedance switch settings.
- Removable logos to allow for discrete use.
- 100v - 16W, 8W, 4W, 2W or 16W@16Ω.
- 70v - 16W, 8W, 4W, 2W, 1W or 16W@16Ω.
- 25v - 2W, 1W, 0.5W, 0.3W, 0.2W or 16W @ 16Ω.
- Nom SPL: 82dB@1mt Max SPL: 94db@1mt.
- Dims: 151.0mm x 101.4mm.
- Weight: 0.9kg net, 1.4kg gross.
- Cutout: 140.0mm
Specifications
| Impedance | 16 ohm |
|---|---|
| Sensitivity (2.83 V/1 m) | 79 dB |
| Sensitivity (1 W/1 m) | 82 dB |
| Power Handling | 16W |
| Maximum SPL | 94 dB |
| Average Coverage Angle (2 kHz - 10 kHz) | 90° |
| Transformer Taps | 16, 8, 4, 2, 1W |
| Driver | 3" polypropylene with rubber surround and phase plug |
| Input | 4 pin Euroblock |
| Conformance | UL1480 / 2043 planned, RoHS, CE approved |
| Dimensions (Dia x H) | 6" (152.4 mm) x 3.92" (99.5 mm) |
| Weight | 3.09 lbs (1.4 kg) |
