Product Details
＋
Overview

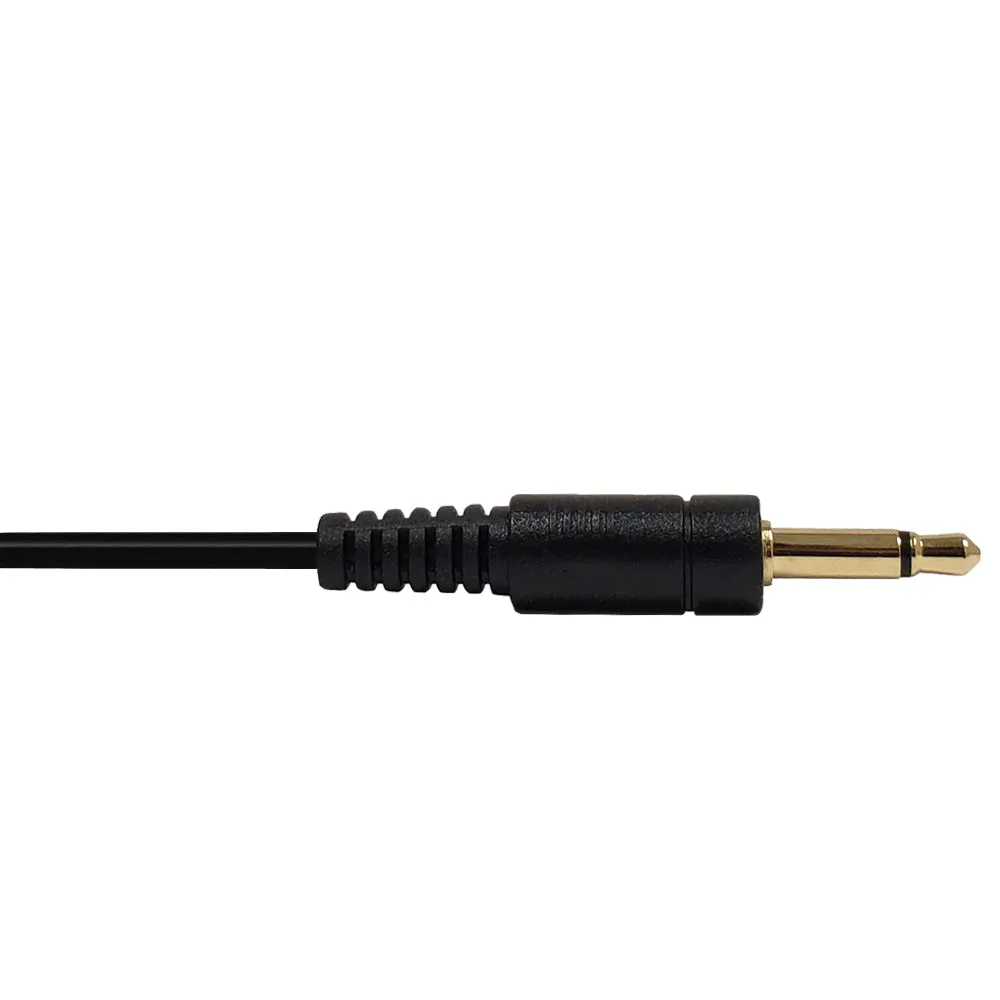

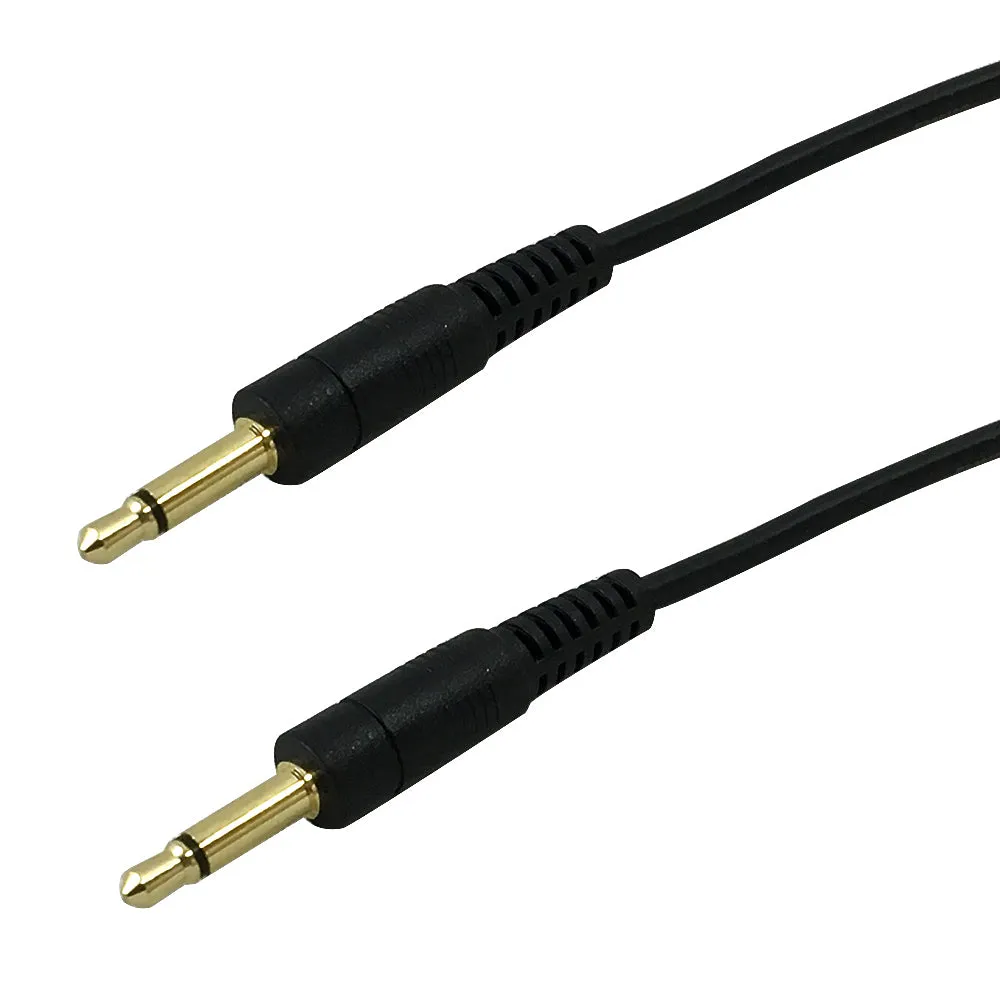

This mono audio cable has a 3.5mm male on one end and a 3.5mm male on the other. It is typically used to connect mono audio and serial data devices such as telephone systems and home automation systems.
|
| Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Bare Copper Spiral |
| Strain Relief | Molded PVC |
| Storage Temperature | -10 „ƒ to 70 „ƒ |
| Operating Temperature | 0 „ƒ to 45 „ƒ |
Connectors | |
| Connector A | 3.5mm Mono Male |
| Connector B | 3.5mm Mono Male |
| Connector A Diameter | 7.6mm |
| Connector B Diameter | 7.6mm |
Approvals | |
| c(UL)us | Yes - Cable |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.06 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.25 lbs |
